Introduction

5470P
- Grand Complications
Manual winding

Patek Philippe presents a new high-performance manually wound movement that measures and displays 1/10th of a second – while maintaining this high degree of accuracy throughout the entire timekeeping process. To meet this mechanical challenge, the Manufacture used the CH 29-535 PS caliber, the first Patek Philippe classically built chronograph movement entirely designed and produced in its workshops and accompanied by six patents (2009).

The movement was equipped with an additional chronograph mechanism exclusively dedicated to 1/10th of a second and the monopusher chronograph is equipped with two central hands, each driven by one of the mechanisms. In order to guarantee simple and fast reading of measured times, the movement developers devised a patented system of concentric seconds and fractions of a second indications. Last, to meet the triple objective of efficiency, reliability and precision, the Manufacture has integrated – for the first time in the current collection – its high-tech Oscillomax® regulating organ developed by the Patek Philippe technical department responsible for the innovations featured in the 2011 “Advanced Research” series (17 patents).

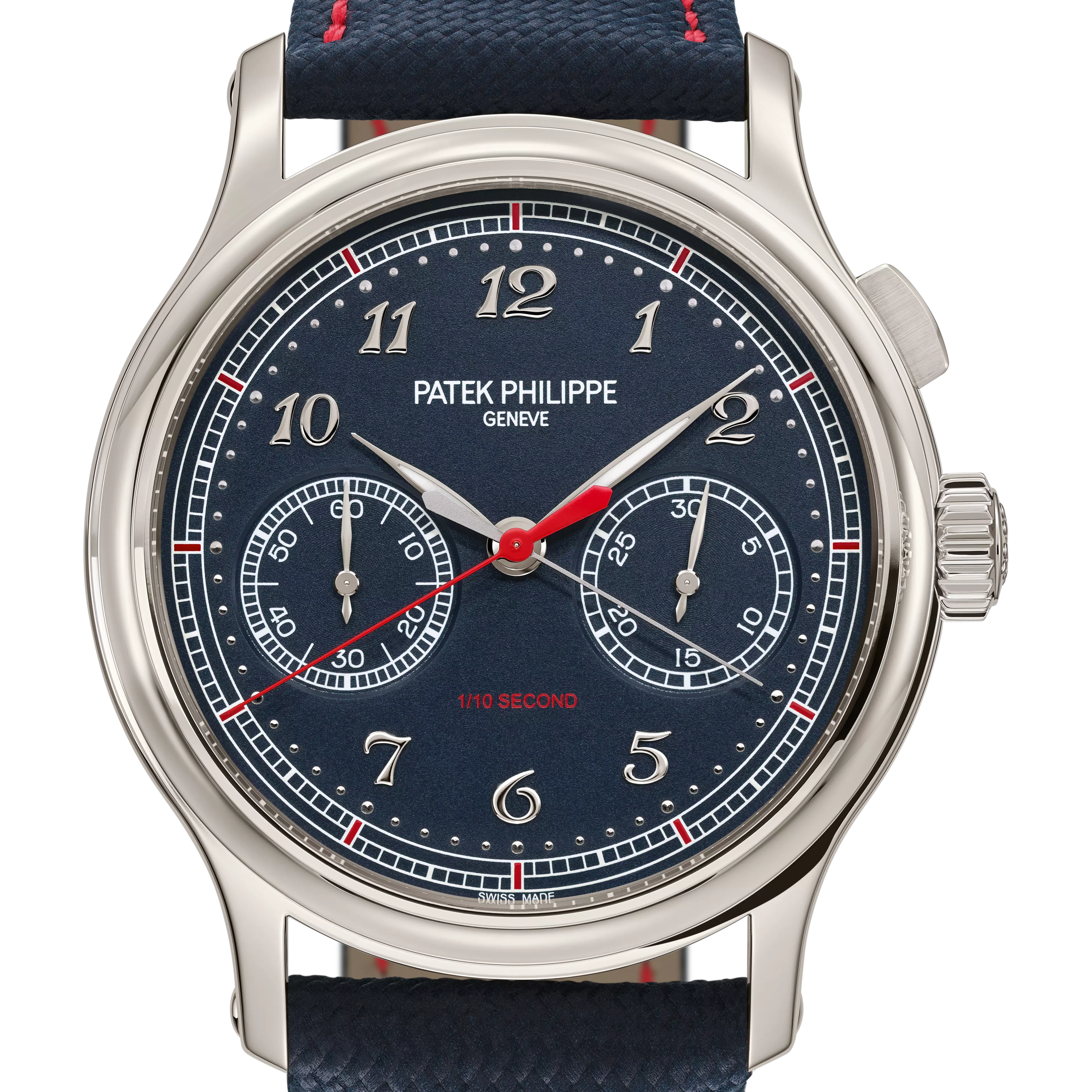

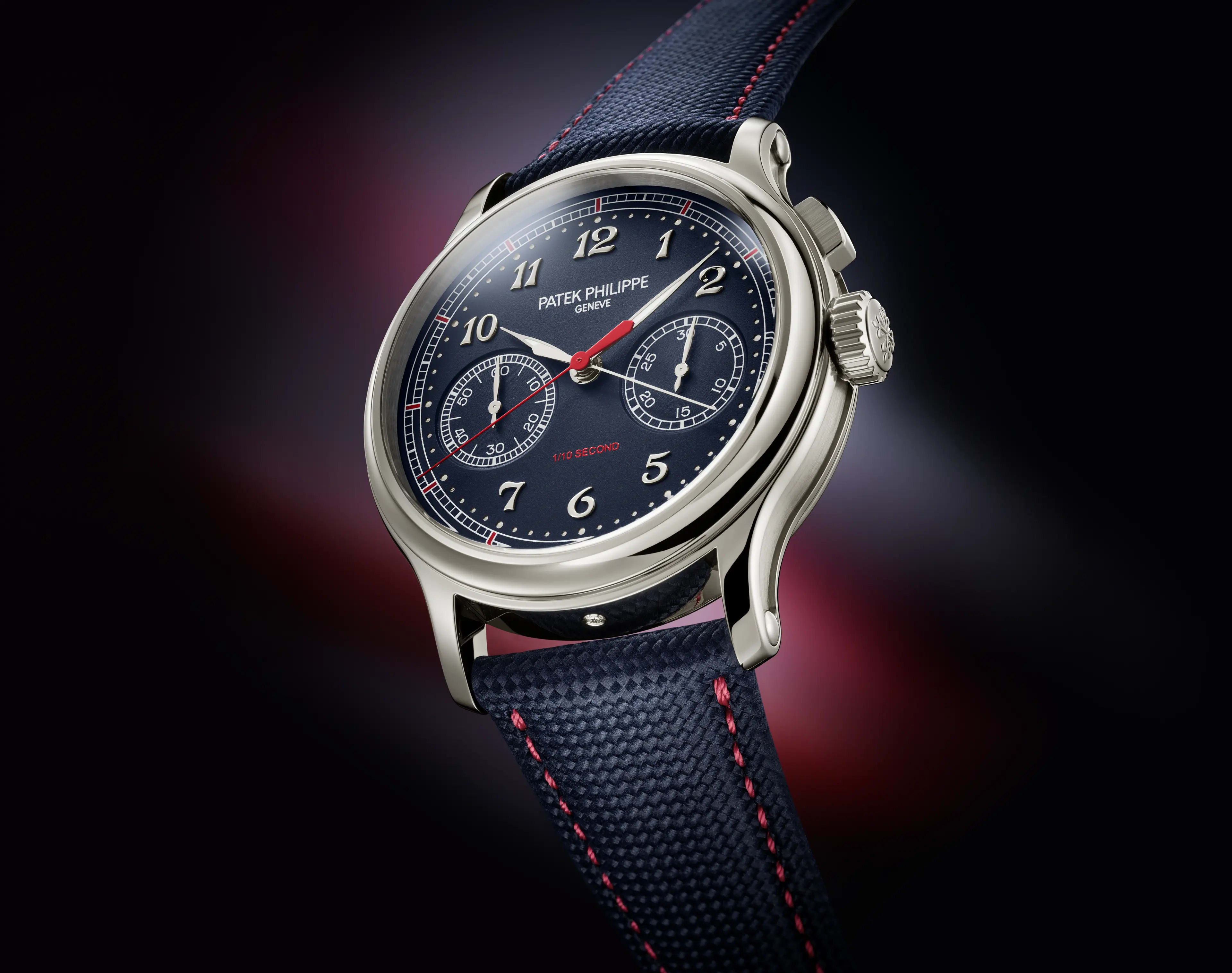

Watch

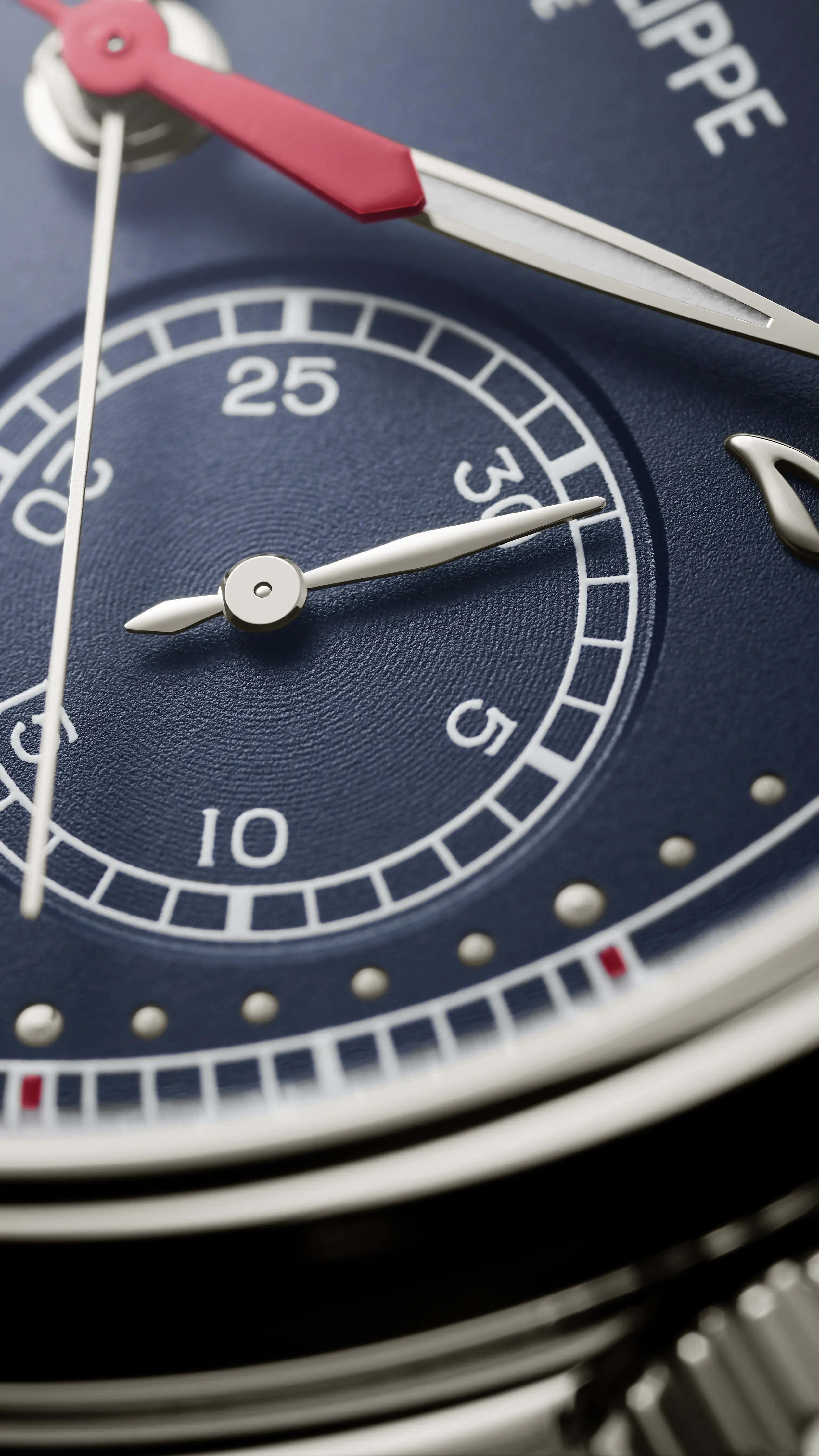

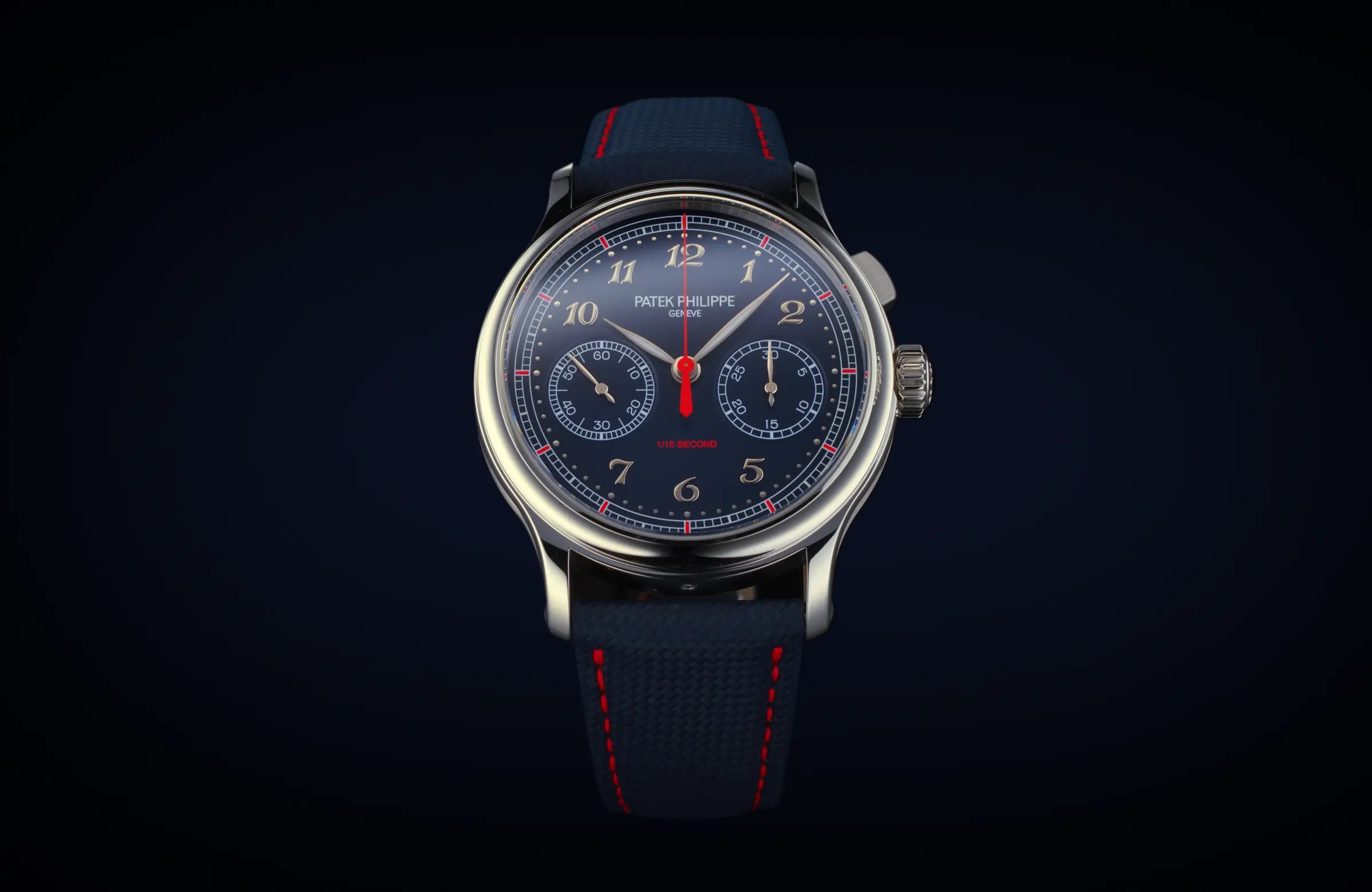

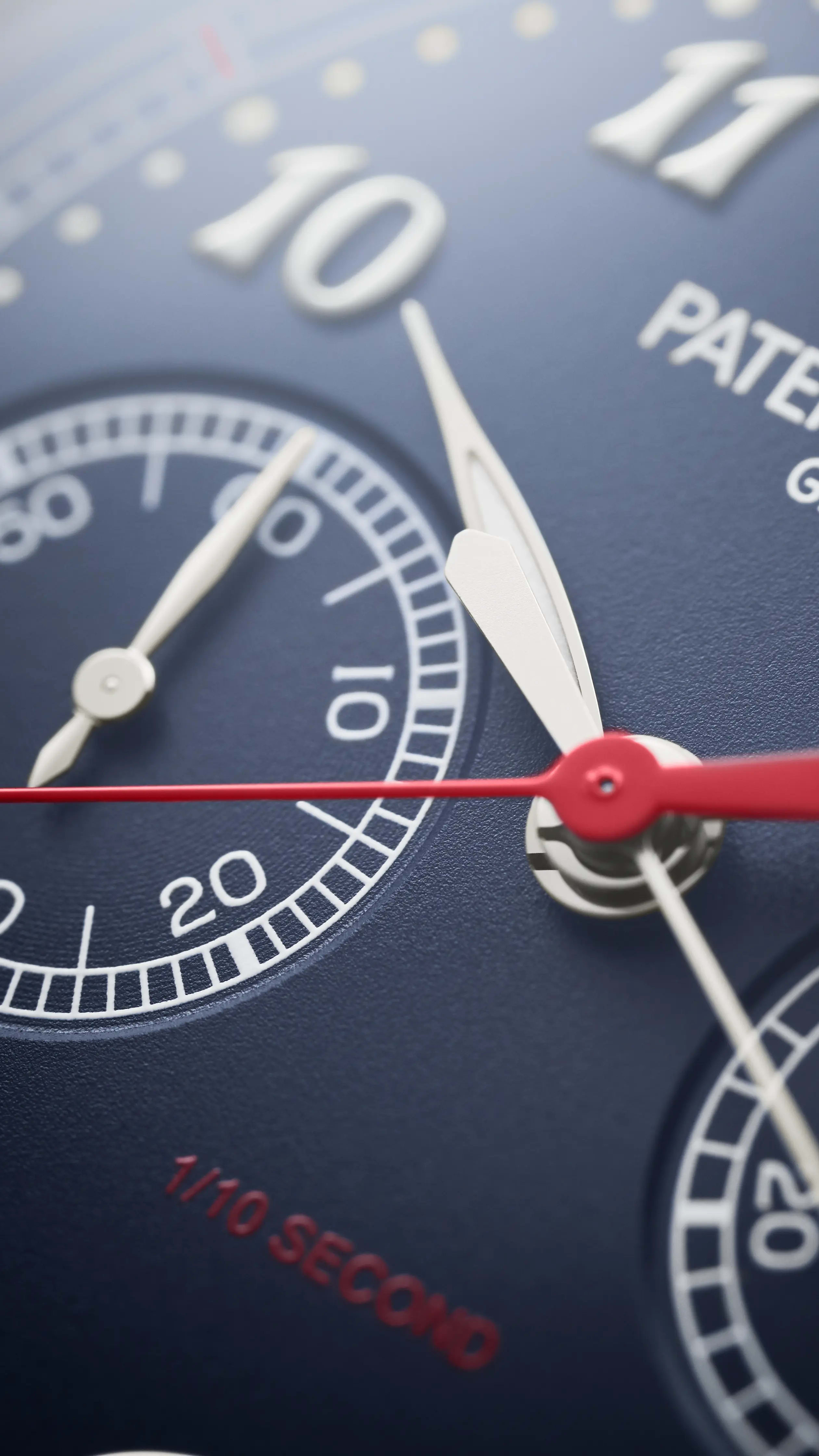

Manually wound mechanical movement. Caliber CH 29‑535 PS 1/10. 1/10th of a second monopusher chronograph. Central chronograph hand. Central 1/10th of a second hand. Instantaneous 30-minute counter. Small seconds.

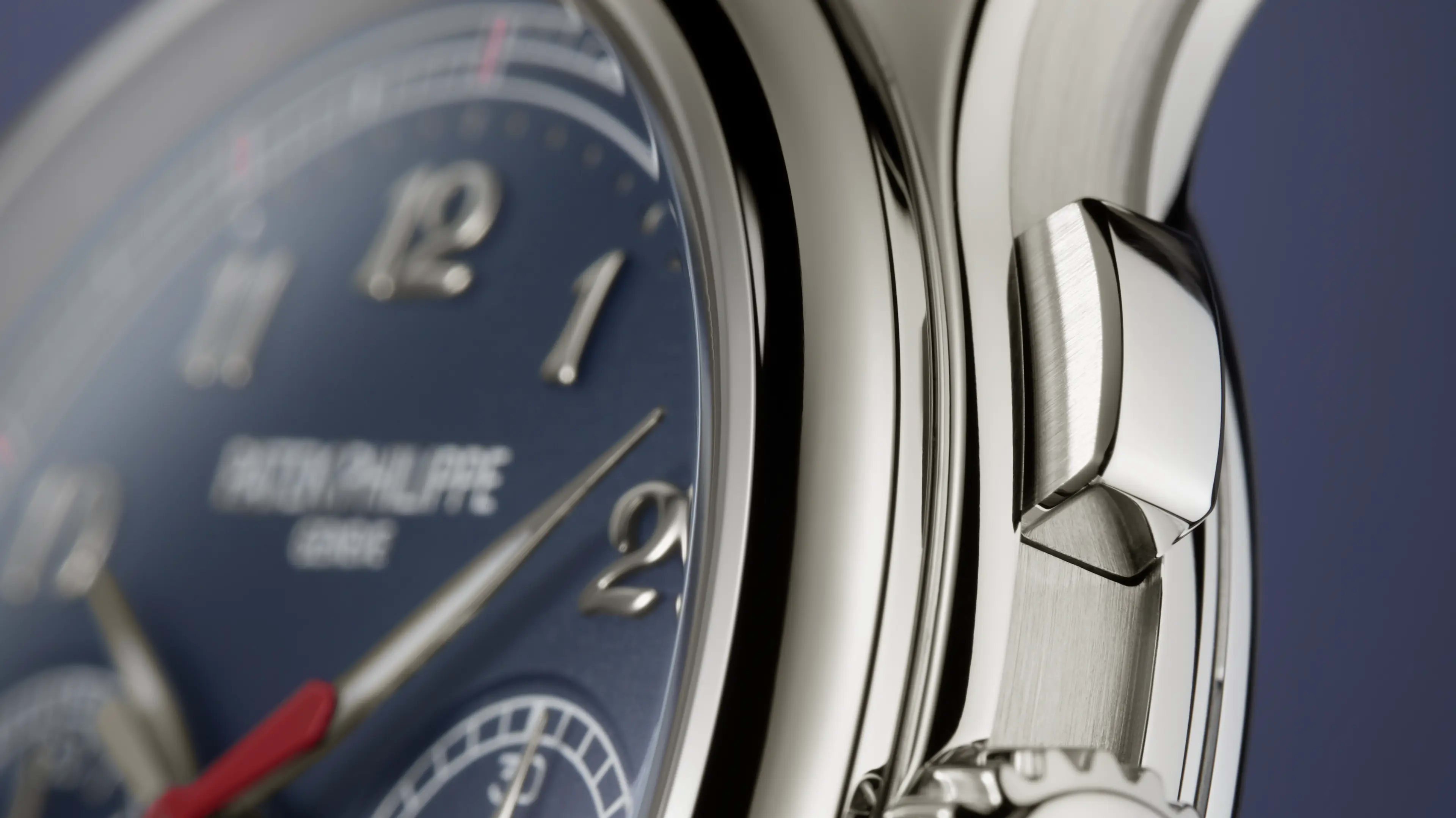

Dial
Blue varnished, gold applied Breguet numerals.

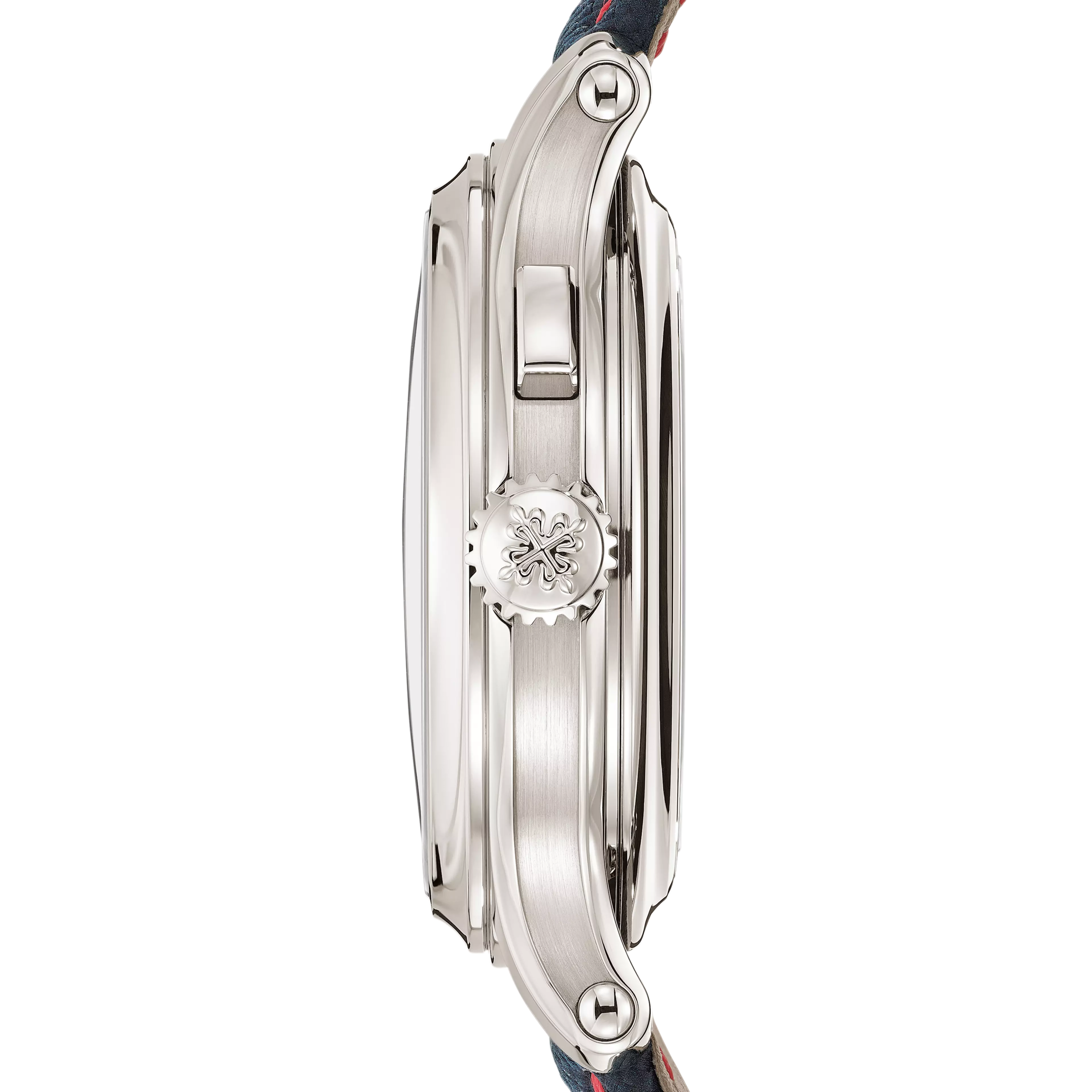

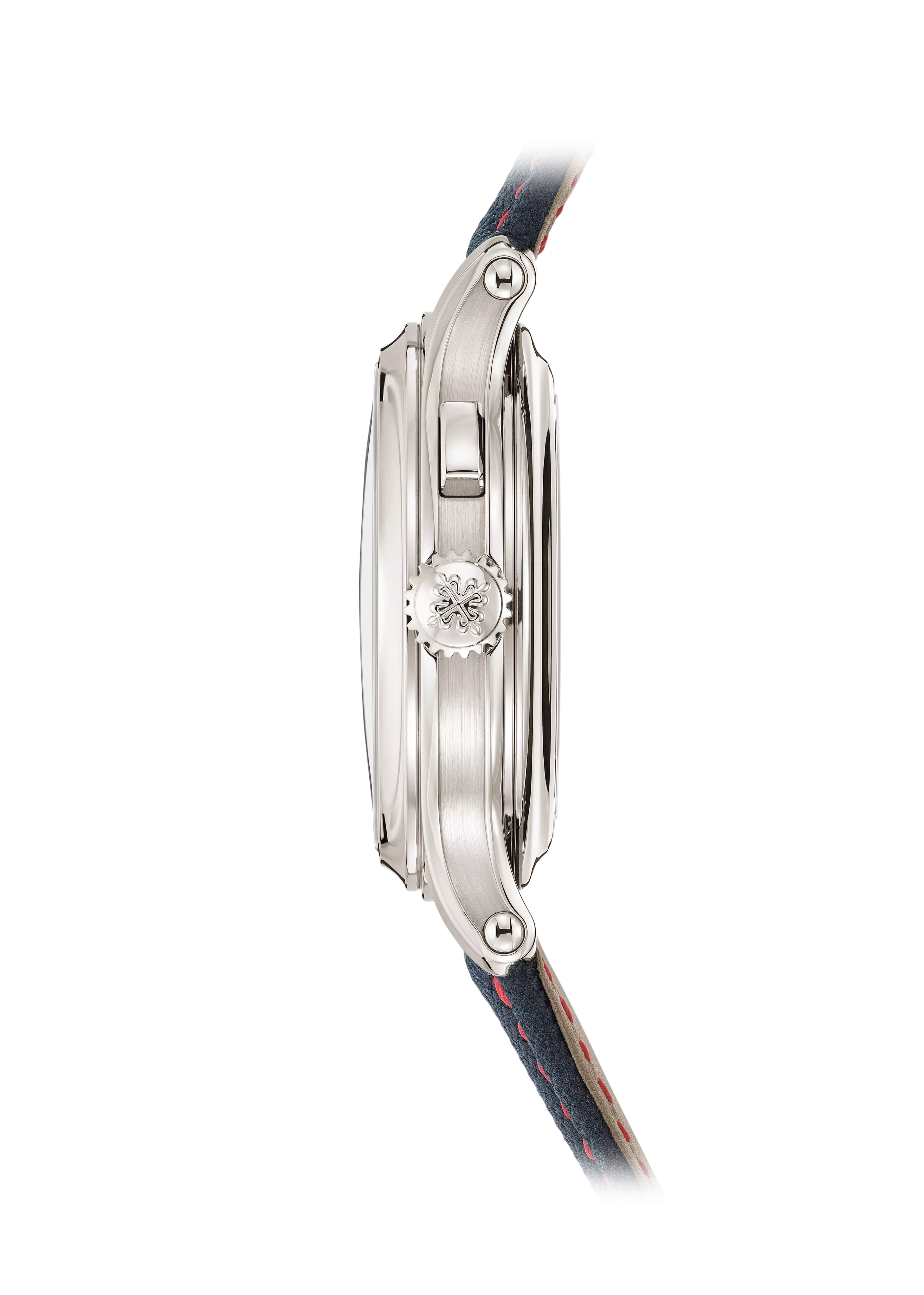

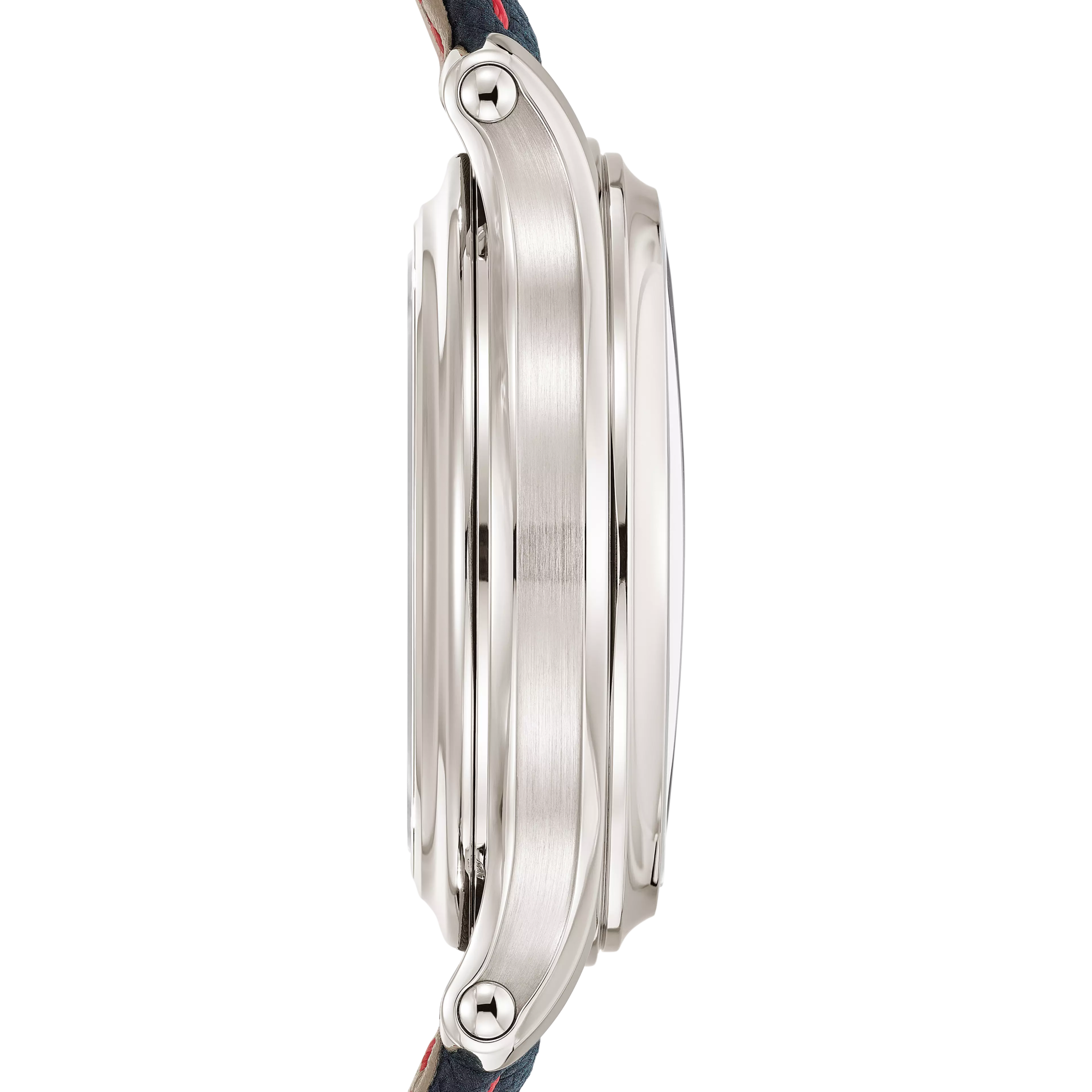

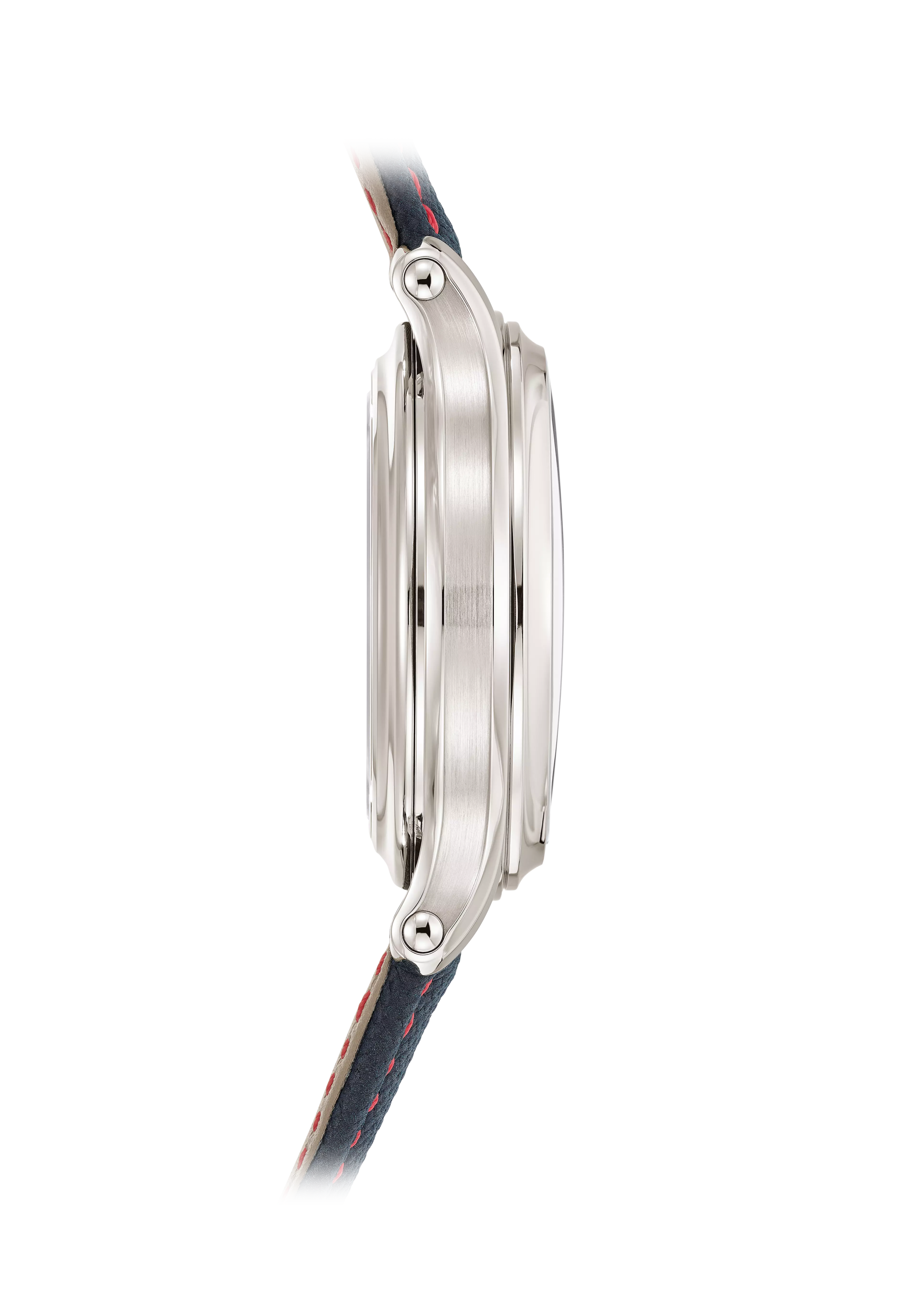

Case

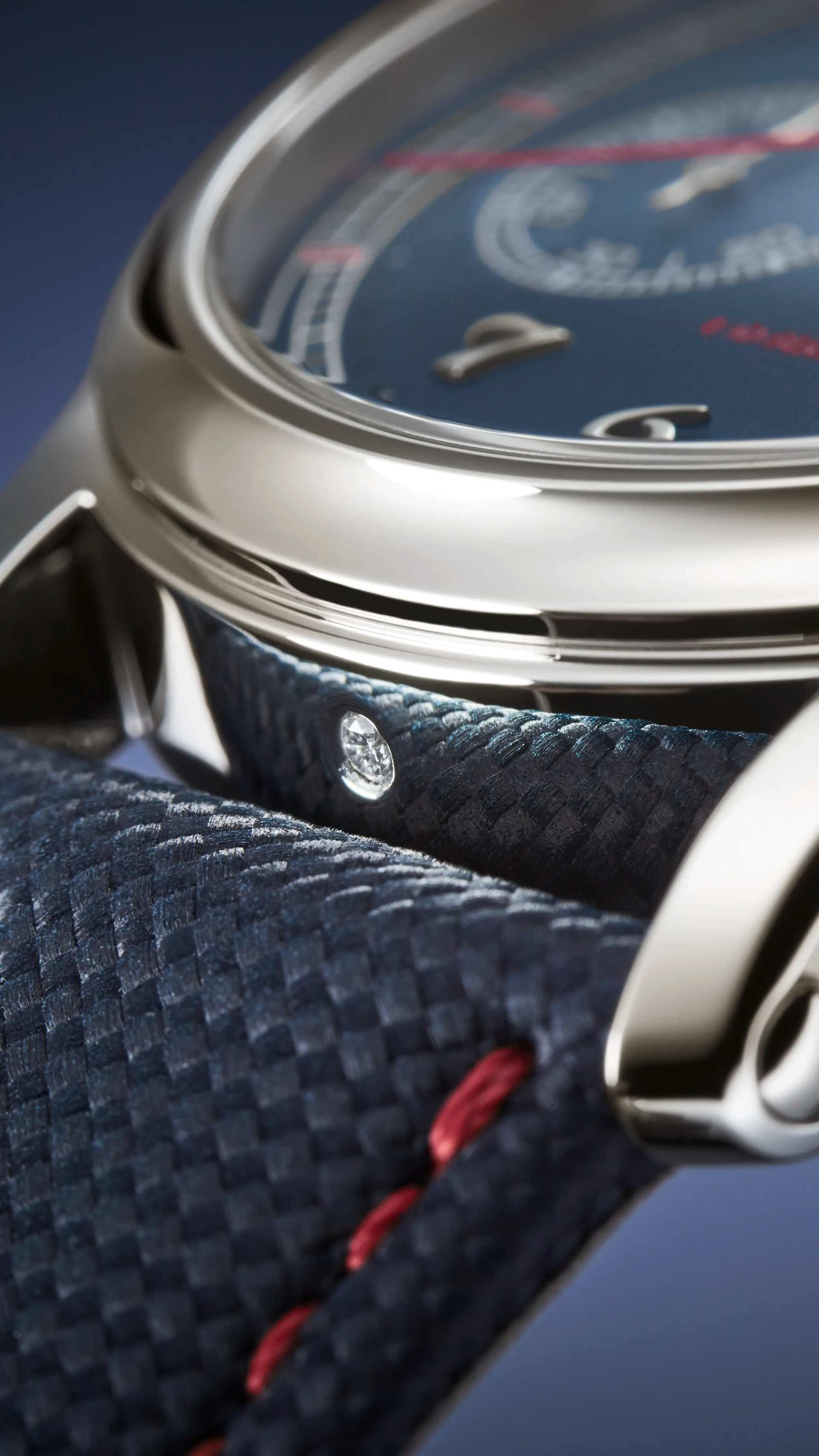

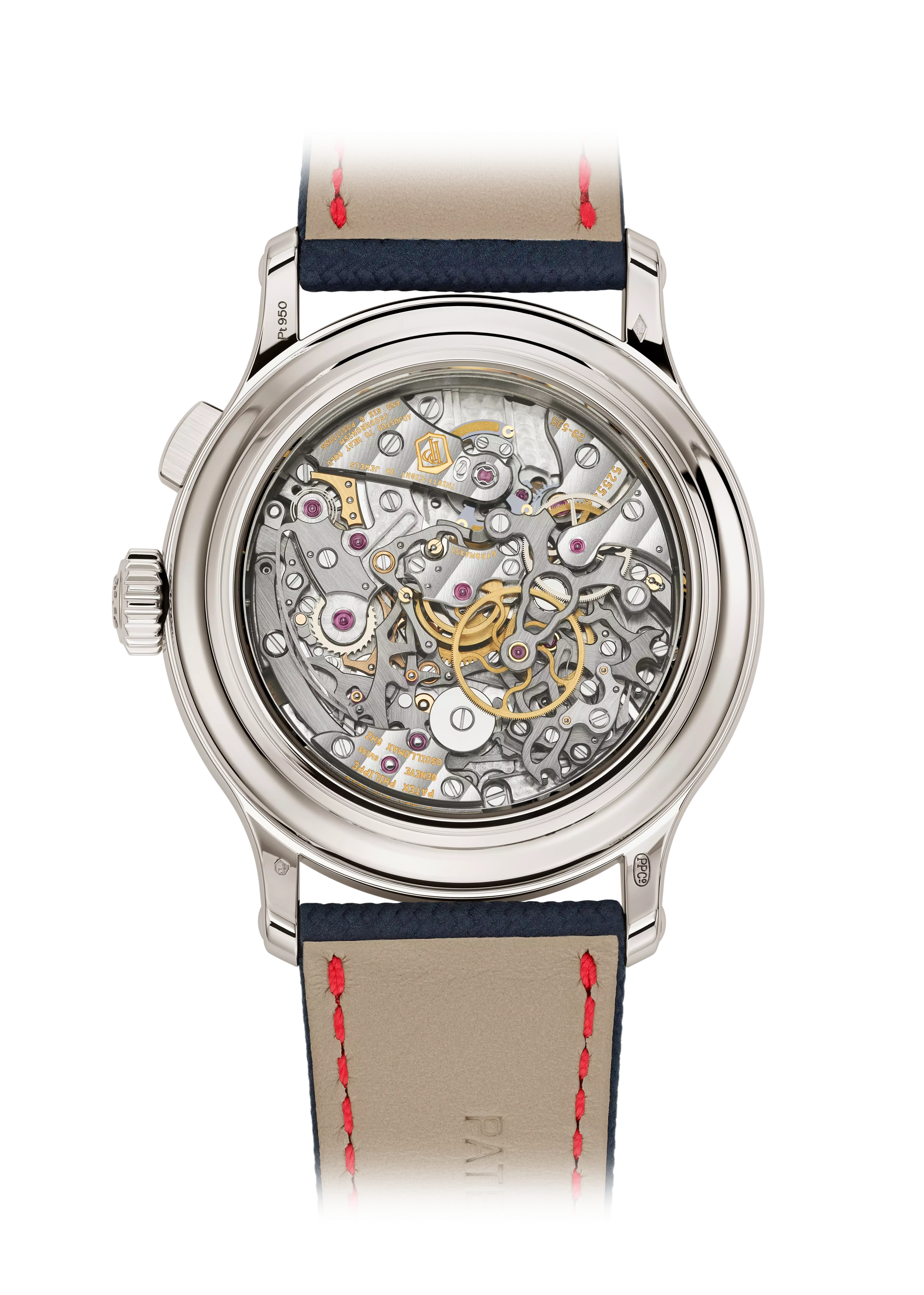

Platinum. Diameter: 41 mm. Height: 13.68 mm. Water-resistant to 30 m. Interchangeable solid and sapphire crystal case backs.
Strap

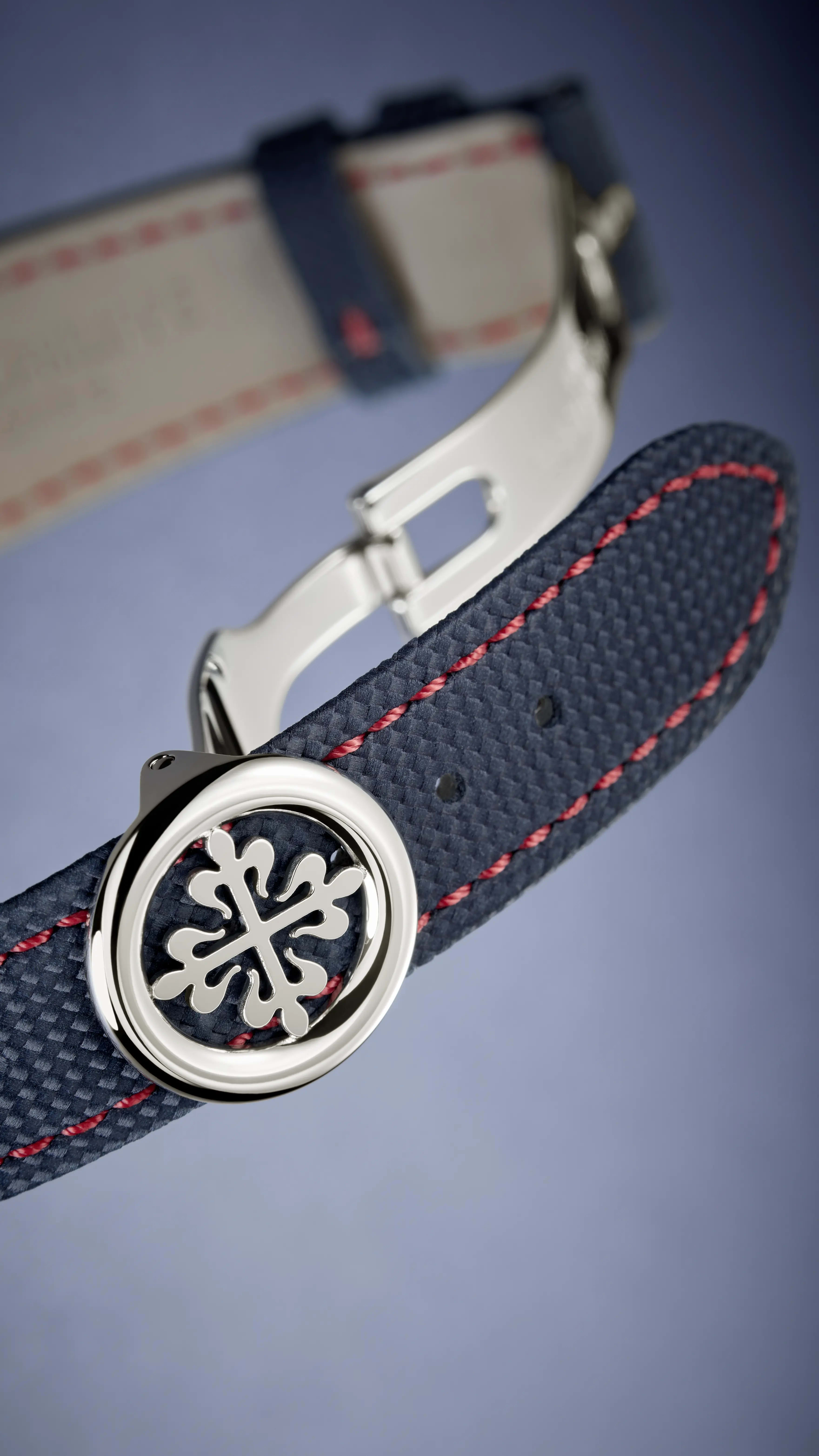

Calfskin, embossed with fabric pattern, hand-stitched, navy blue. Fold-over clasp.
Price :

This watch has been added to your wishlist

Caliber

CH 29-535 PS 1/10
Manual winding

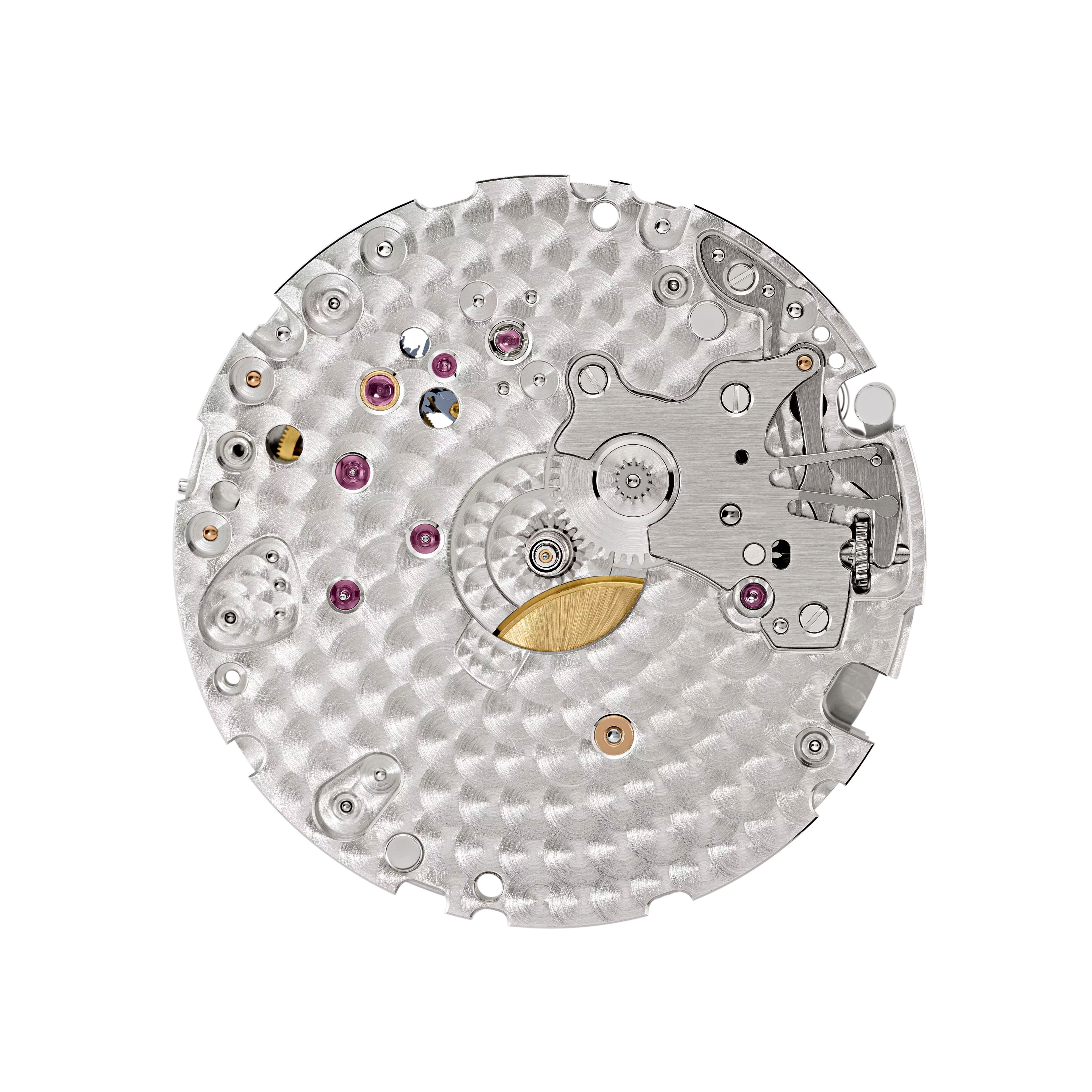

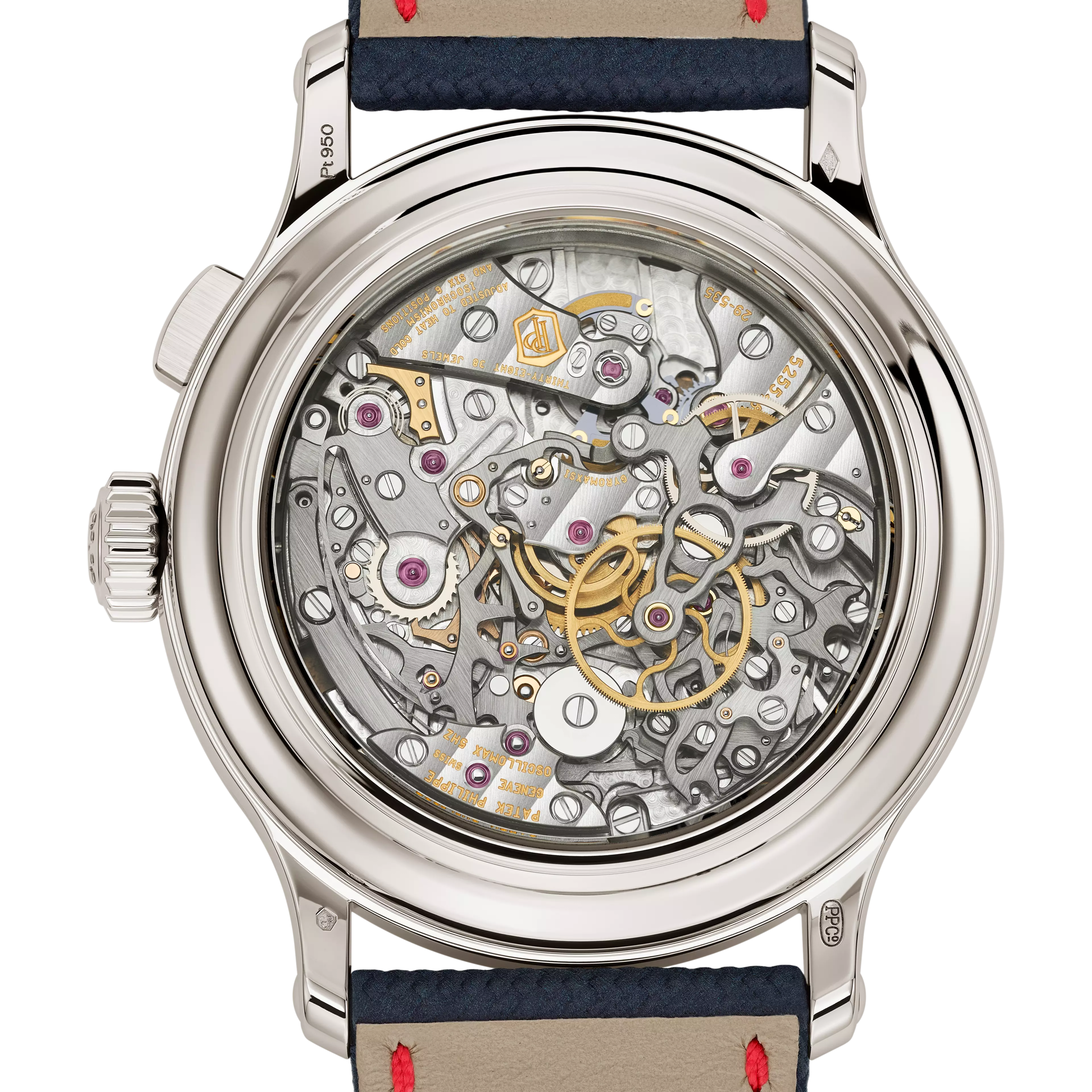

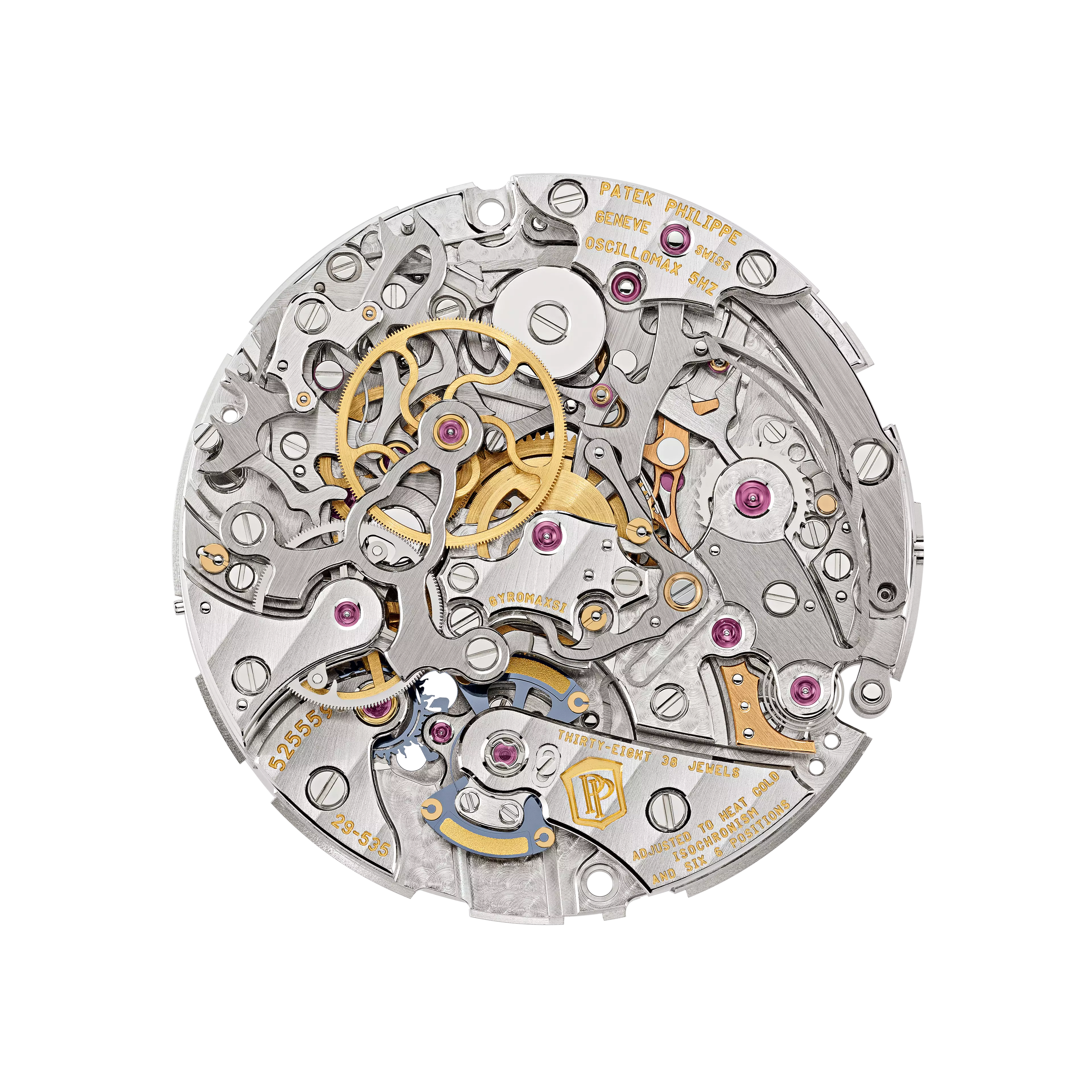

Patek Philippe Caliber CH 29-535 PS 1/10 - Front
Front Back

CH 29-535 PS 1/10
Manual winding

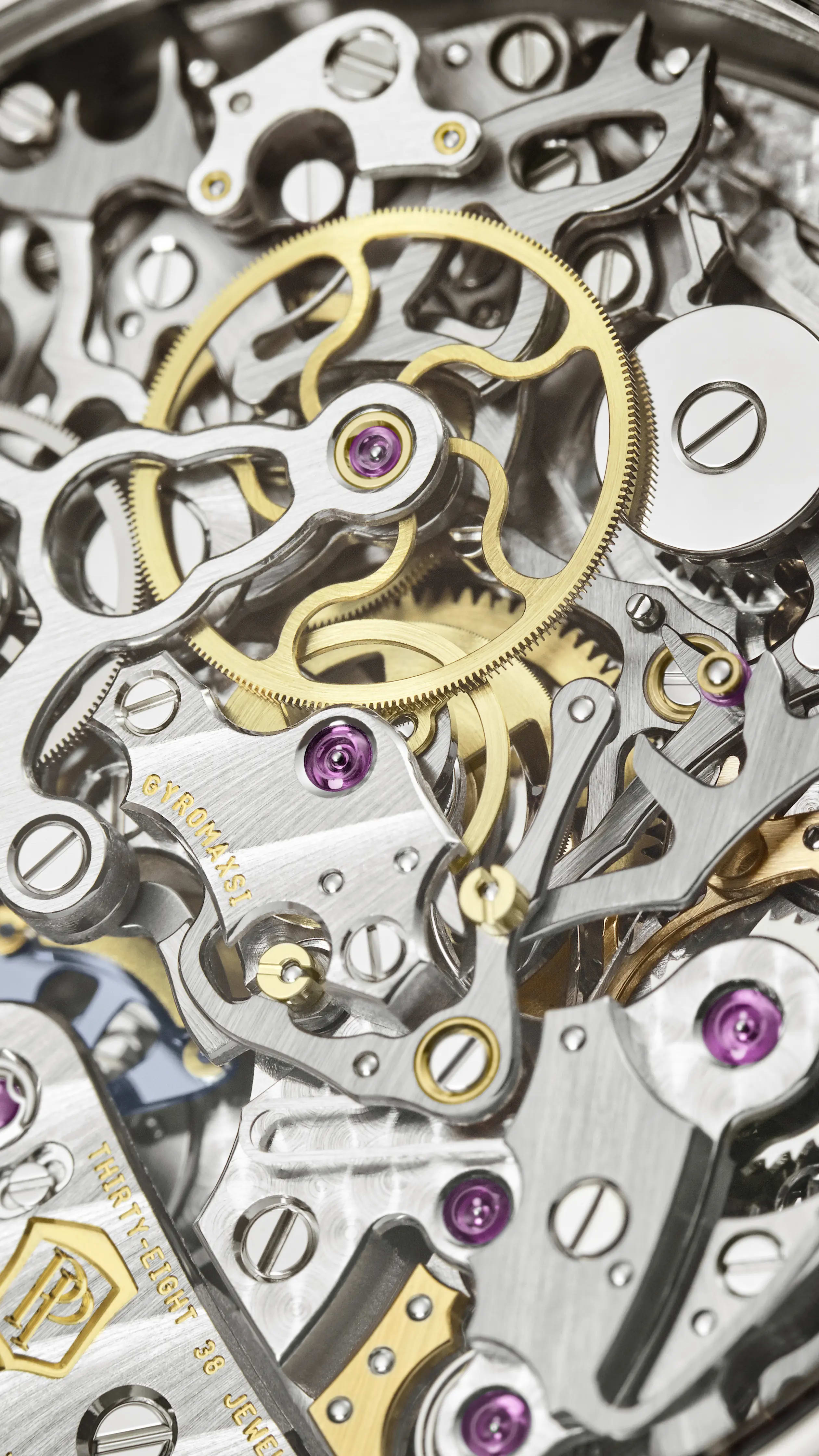

1/10th of a second monopusher chronograph. Central chronograph hand. Central 1/10th of a second hand. Instantaneous 30-minute counter. Small seconds. Diameter: 29.6 mm. Thickness: 6.96 mm. Number of parts: 396. Power reserve with the chronograph disengaged: min. 48 hours. Escapement: Pulsomax® with lever and escape wheel in Silinvar®. Balance: Gyromax® in Silinvar®. Frequency: 36,000 semi-oscillations/hour (5 Hz). Balance spring: Spiromax®.
